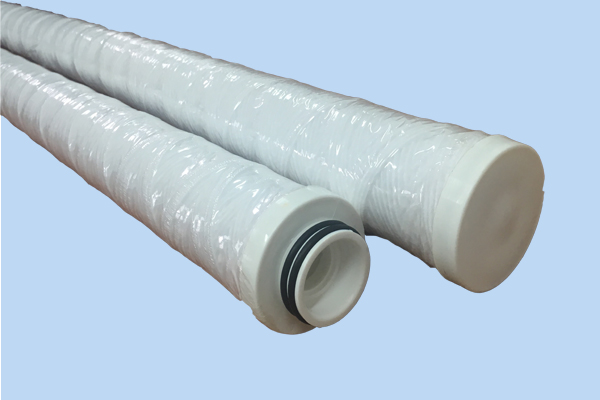

Our string wound cartridges are manufactured with structured open outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions.


Applications
■　Pre-Filter for drinking water treatment  ■　Acid Base liquid in Chemical Processin
■　Food and beverage ■　Semiconductor
■　Pharmaceuticals

Features
■　Fits all the standard housings
■　Low pressure drop, high dirt holding capacity and long service life
■　Loose outer layers and tight inner layers offers effective depth filtration
■　Various filter media fit with various applications

Specifications
■　Dimensions:Outside diameter: 63mm,115mm　Inner diameter: 28mm, 30mm　Length:9.75",9.87",10", 20" ,30", 40"
■　Material of Constructions:Filter media: Polypropylene, Bleached cotton, Glass Fiber 　Core: PP, Stainless Steel
■　Performance:Removal Rating: 1µm,5µm,10µm,20µm, 30µm,50µm, 75µm, 100µm
　 Polypropylene material for non-organic solvent, maximum recommended operating temperature?60°C
　 Bleached cotton material filter cartridge with stainless core apply to organic solvent, water, oil,
　 alkalinity solvent, beverage, pharmaceuticals
　 maximum recommended operating temperature: 120°C

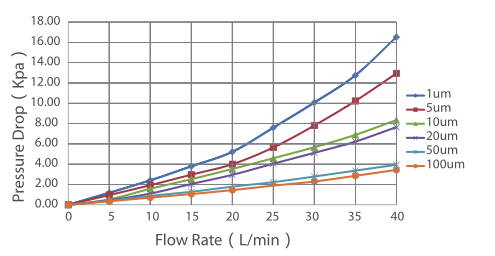

PP String Wound Filter Pressure Drop vs.Flow Rate@20°C

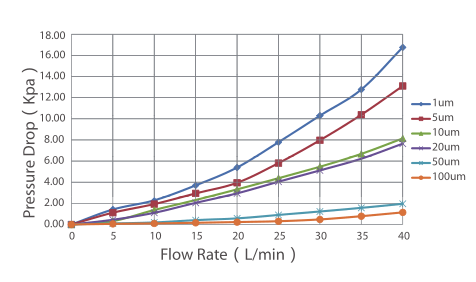

Cotton String Wound Filter Pressure Drop vs.Flow Rate@20°C
