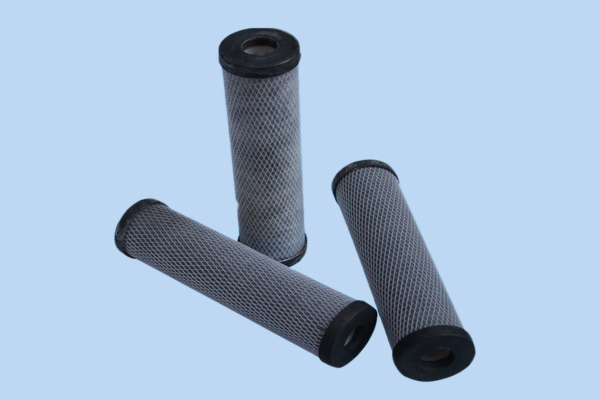

Our Activated Carbon Filter Cartridge are formed using extruding carbon fines and food-grade binders.This makes it FDA approved for the Food/Beverage industry. It also ensures that no bad taste is left behind. This filter is also great for filtering organic matter effectively.

Applications
■　Drinking water treatment
■　Industrial water treatment
■　Food industry
■　Plating

Specifications
■　Dimensions:Outside Diameter: 20mm,50mm,65mm, 68mm, 115mm
　  Inside Diameter: 28mm,30mm
　  Length: 9.75”,9.87”,10〞, 20〞, or up to customers’requirements

■　Material of Constructions:Filter media: acid washed bituminous GAC & water washed coconut shell GAC
 　 End caps: PP 　Gasket: Silicone, EPDM, NBR　Netting: Polyethylene

■　Performance:Removal Rating: 5µm,10µm
　  Maximum operating temperature: 52°C
　  Maximum operating pressure: 10 Bar
　  Maximum differential pressure: 7 Bar at 20°C

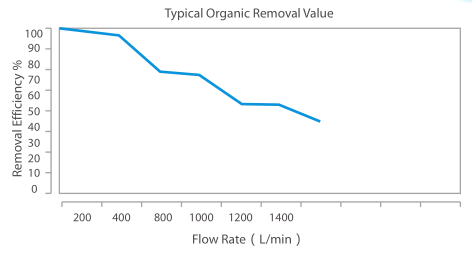

Flow Rate-Adsorption rate charter
