1.Single Bag Filter Housing

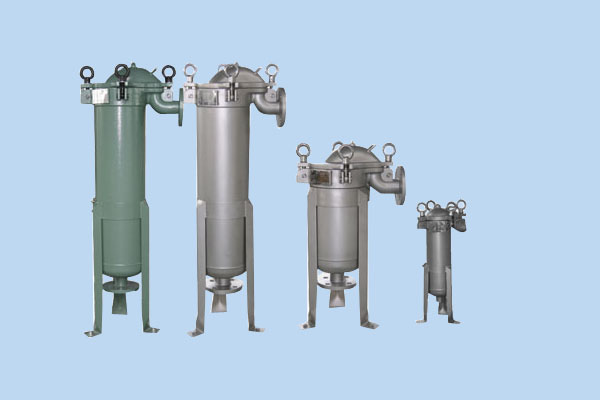

Single bag filter housing series has top inlet and side inlet design type,top inlet flows from top in and bottom out,side inlet is side in and bottom out.There are four dimensions which can be used together with the international standard size1,Size2,Size3,Size4 filter bag.Its cover hold down filter bags for good 360°sealing,four eyebolts for light closure,mounting legs to adjust housing height.


Filter housing code	1P1S	1P2S	1P3S	1P4S
Fitting standard bags	P1S	P2S	P3S	P4S
Filter Area(㎡)	0.25	0.5	0.09	0.16
Max flow rate on water(m³)	20	40	6	12
Filter volum(L)	15.5	27	3	4.5
Designed Temp(℃)	150	150	150	150
Designed Pressure(bar)	10	10	10	10
Inlet&Outlet connection	Flange/NPT/BSP
Sealing material	Sillicone/viton/EPDM/PTFE
Surface treatment	Polished and sandblast
Housing material	SS304/SS316L/Carbon Steel

2.Multi-bag filter housing

Multi-bag filter housing is a pressure-type filtration device,adaptable multi-purpose filtration performace large flow liquid filtration,it can operated from 3 to 12 multi bags,the inlet and outlet connection from 3” to 10” flange meet different flow requirements.The cover can be bolted closed lid and quick opening of V-shaped hoop locking,quick opening is suitable for frequent need to replace the bag.Filter switch only 10 seconds,replace the bag can effectively reduce the time and improve efficiency.This simple filter operating flexible,energy efficient,replace the bag is very convenient,large filter area,small filtration resistance and high filtration efficiency.

Filter Housing Type	Inlet and outlet connectIon	Max flowing rate (m³/h)	Sealing Material	Surface treatment	Housing material
3P2S	DN80	120	Sillicone/viton/EPDM/PTFE	Polished and sandblast	SS34/SS316/Carbon steel
4P2S	DN100	160
6P2S	DN150	240
8P2S	DN150	320
10P2S	DN200	400
12P2S	DN200	480

3.Duplex filter housing

Duplex vessel consists of two separate bag filter vessels what share the same inlet and outlet connections,thus having the capacity to double the flow rate and filtration surface area by utilizing both vessels simultaneously,alternatively,during the application where a continuous flow(without interruption) is required,isolation valves are added to direct the flow through one vessel while a bag changed.

Filter housing code	DP2P1S	DP2P2S
Fitting standard bags	P1S	P2S
Filter Area(㎡)	0.25*2	0.5*2
Max flow rate on water(m³)	20*2	40*2
Filter volum(L)	15.5*2	27.2
Designed Temp(℃)	150	150
Designed Pressure(bar)	10	10
Inlet&Outlet connection	Flange/NPT/BSP
Sealing material	Sillicone/viton/EPDM/PTFE
Surface treatment	Polished and sandblast
Housing material	SS304/SS316L/Carbon Steel
