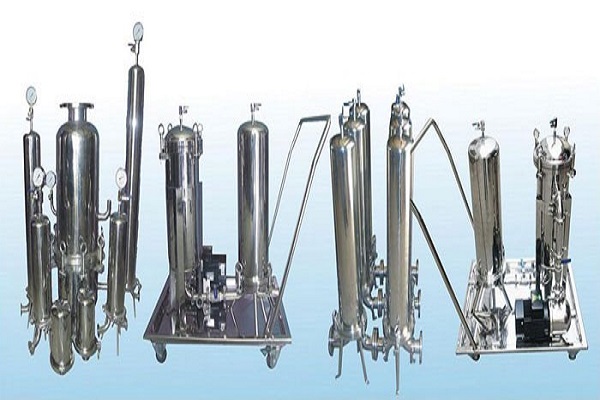

Cartridge filter housing is welded construction with 304 and 316L stainless steel,the surface is electropolished and mechanical polished,
which offers for cost-effective filtration with the models from 1~21 standard elements for full range of end connections.
They are good resistant to corrosion and have good durability degree.


Cartridge Material	SS34/SS316L
Elements	1/2/3/5/7/9/11/15...pieces
Cartridge length	10"/20"/30"/40"
Sealing material	Sillicone/viton/EPDM/PTFE
Max pressure(Bar)	3.5-6.0
Inlet and outlet conncetion	Tri-clamp or flange
